RidgeWall

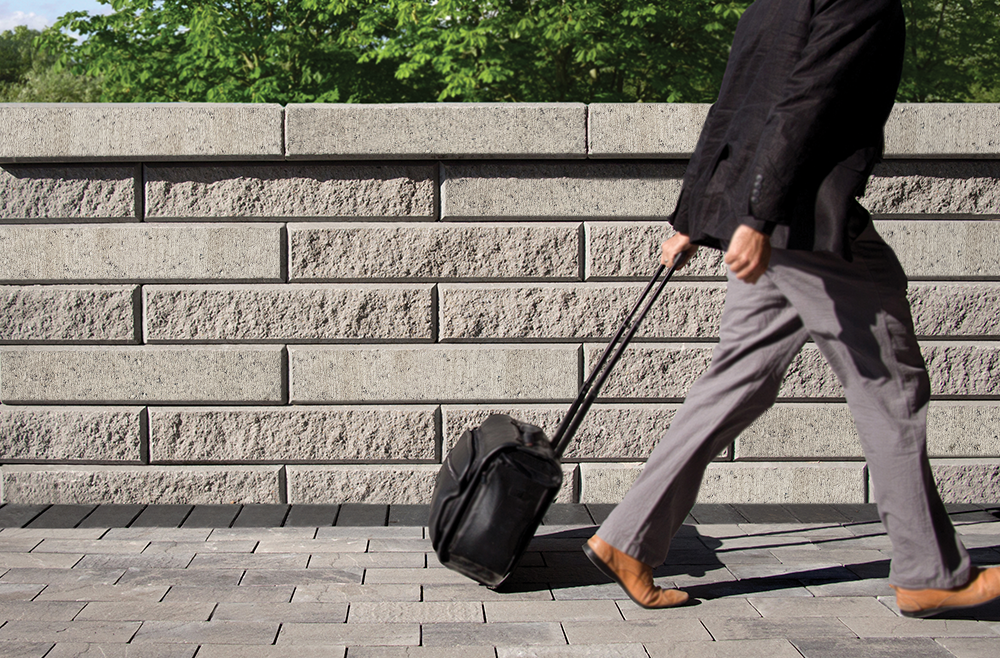

The Ridgewall segmental retaining wall system is a large format modular system primarily used to retain and stabilize large and small areas of earth, through both sheer weight and strategic design. The Ridgewall system provides several unique features, and can easily be installed vertically, in-set, out-set or reversed for a smooth modern design on the opposing side.

Colours

Grey colour swatch

Grey

Grey Mix colour swatch

Grey Mix
*Coping Only

Looking for Pricing?

Find a Dealer to Get a Quote

Units

Block
39 x 16.965 x 7.605 in
1000 x 435 x 195 mm

90º Corner
36.5625 x 16.965 x 7.605 in
937.5 x 435 x 195 mm

45º Corner
39 x 16.965 x 7.605 in
1000 x 435 x 195 mm

Coping
39 x 19.5 x 7.605 in
1000 x 500 x 195 mm

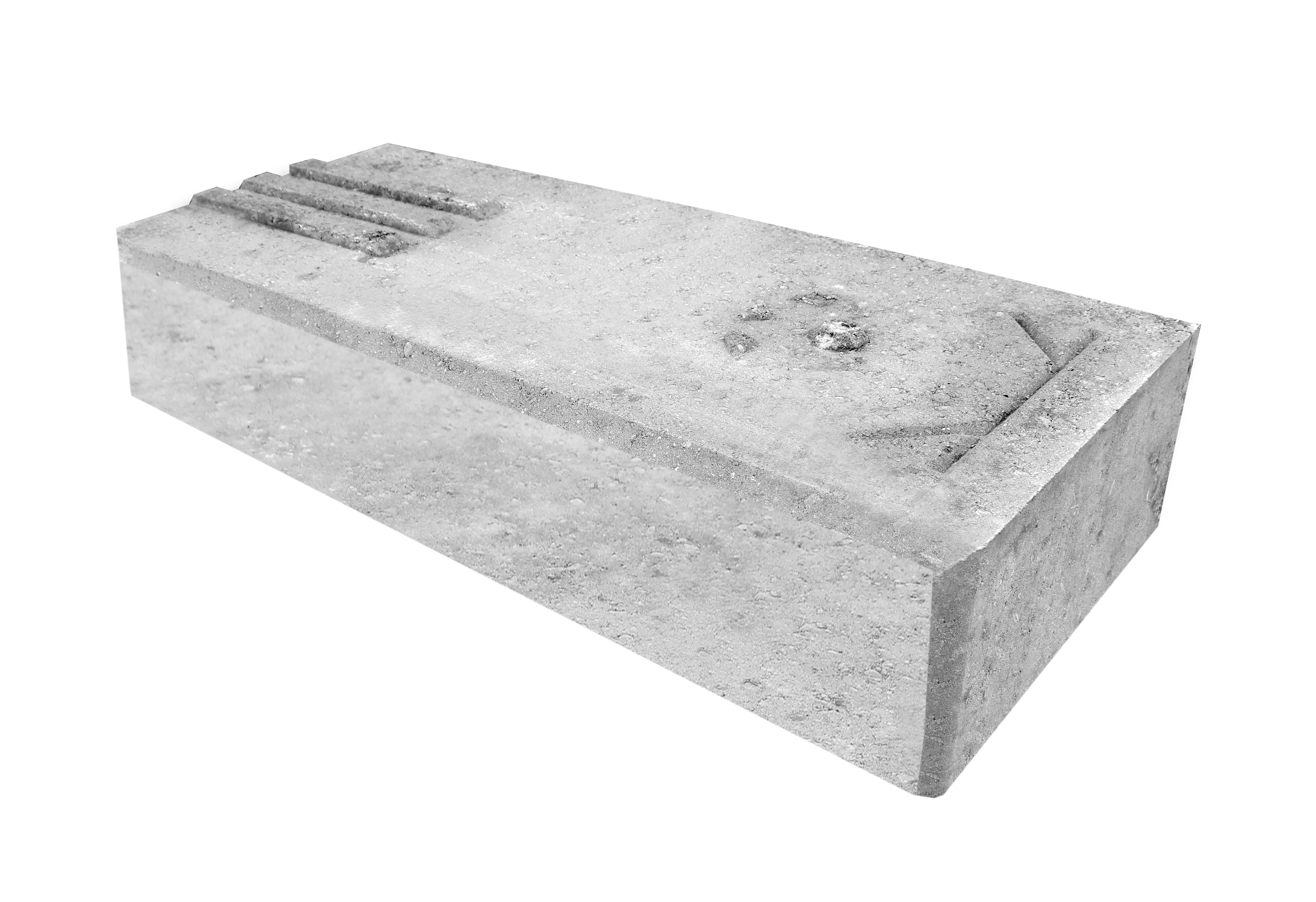

435 Smooth Block
39.4 x 17.1 x 7.68 in
1000 x 435 x 195 mm

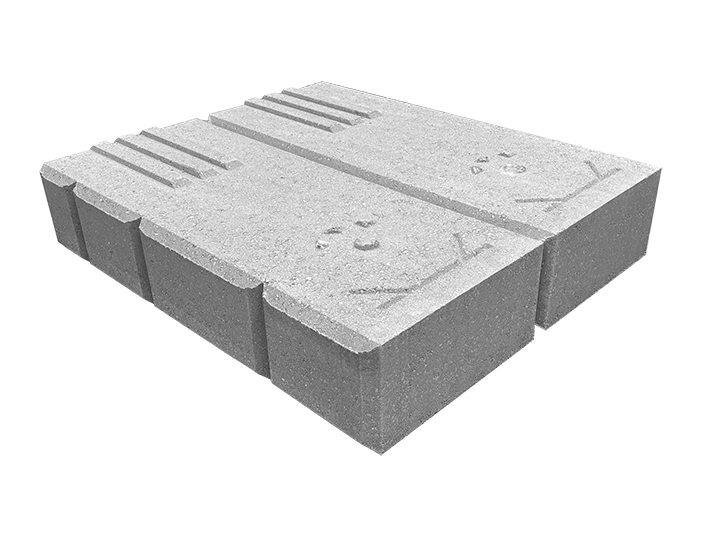

870 Double Unit
39.4 x 34.25 x 7.68 in
1000 x 870 x 195 mm
